HUDSON BUILT IN 1905

t_500x300
Video Cammera

Only heater for entire home. With little to no wall insulation.

Sub standard framing. Not one stud goes from top to bottom in one piece.

No Header.

W20190207_092052
W20190207_092106

1/4 inch PVC plumbing.

W20190208_122215
W20190208_130441

1x4 Door Jams above ceiling.

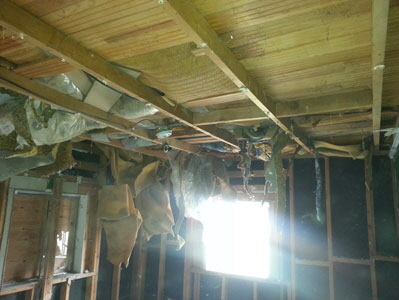

2.8.19 1x6 Fence Pickets above ceiling which turns out to be a patio cover.

W20190208_130455

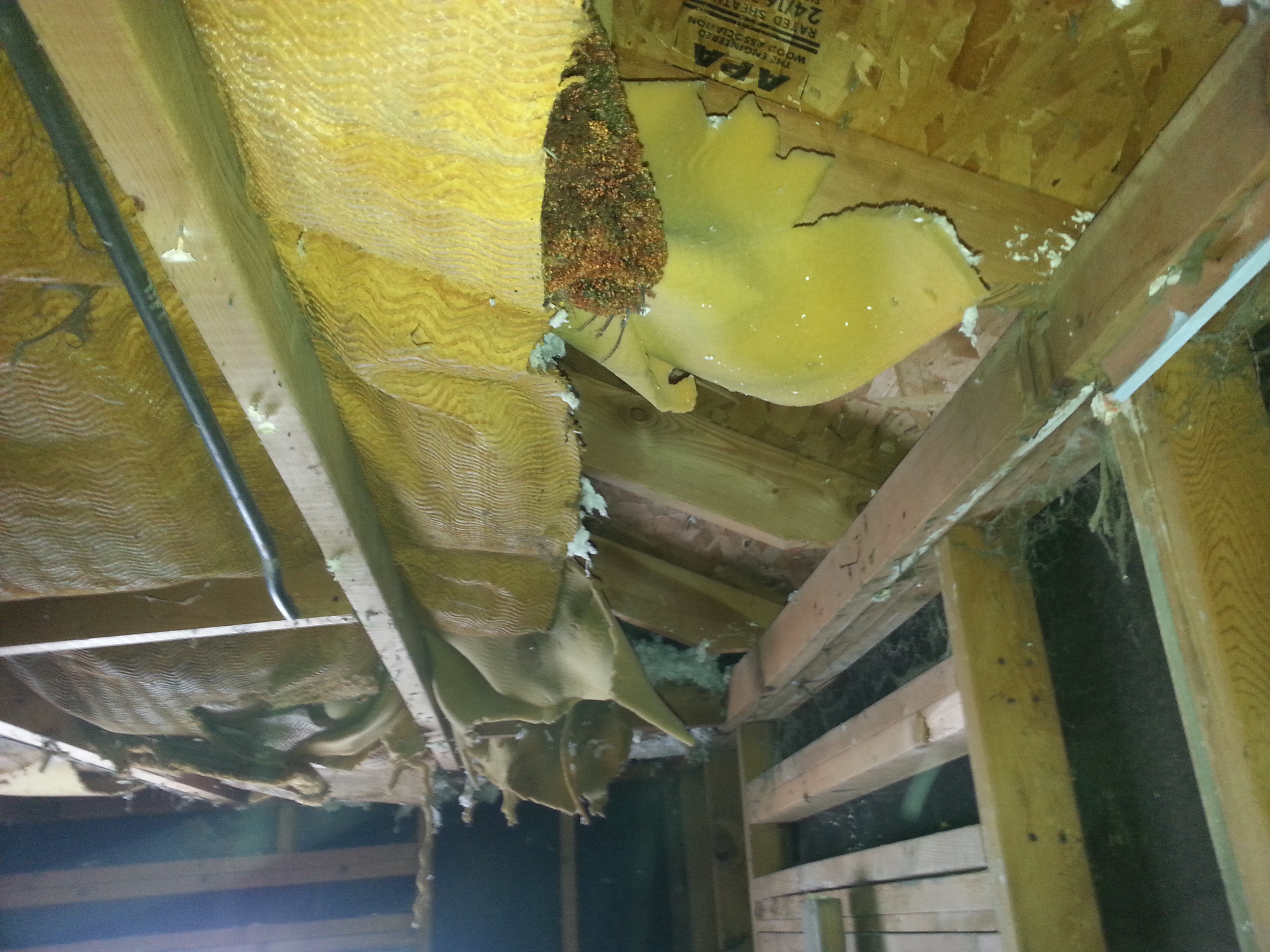

Carpet and Pad above ceiling for insulation.

W20190211Rafter

2.11.19 Ceiling studs installed the wrong direction.

W20190211Rafter-off-Stud2
W2019-02-11Bow

Wall bowing out. Walls being pushed away from Rafters. Top plate broken.

W20190212Exterior-support
W20190212Left-chain
W20190212R-Comealong
W20190212Center-chain

2.12.19 Wall is bowing, I am holding/pulling walls together with 4x6x8 beam. which later I found bowed wall in. In the future I raised eye hook to just under top plate.

Chain from window to window through middle wall.

Chain from window to window through middle wall.

Chain from window to window through middle wall.

12.31.18

First Day of Work       1.27.19

W20190212Chaininwall
W20190213AtticCarpet
W20190213KitchenRafters
W20190213Rafters
W20190216BackBeds
W20190221BackRafterWCeilingJoist
Wframing
WRafter-to-top-plate-2

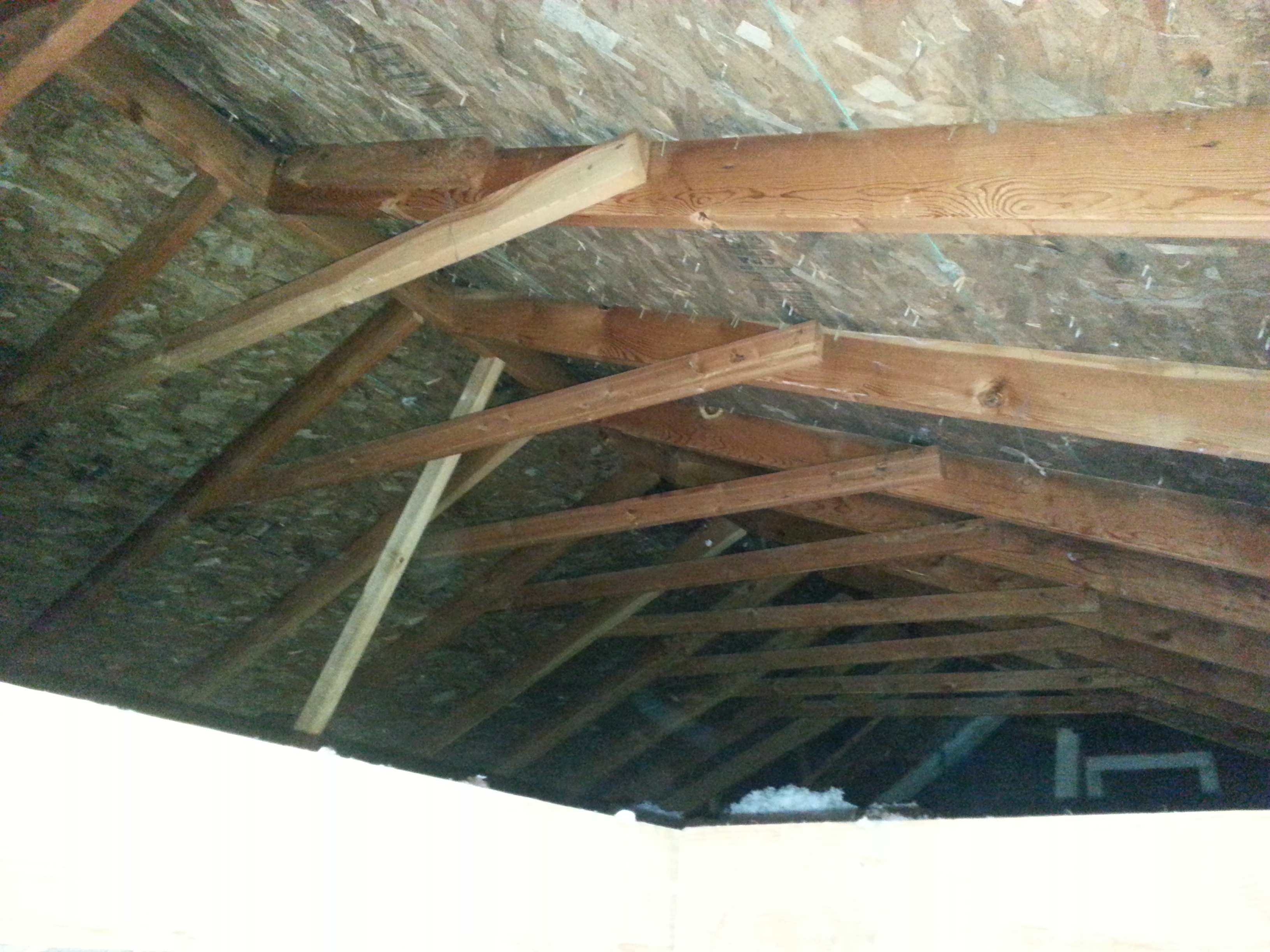

2.13.19 Back bedroom Rafters with support stud into bedroom ceiling. Also it has a collar tie but no rafter tie which allowed wall bowing.

Back bedroom with carpet, pad and door jams above ceiling joist.

Attic above Kitchen. You can see original wall sticking out of insulation.

2.21.19 Ceiling joists were installed incorrectly(perpendicular) to rafters.

Rafter to top plate with birdsmouth cut more than 25% of rafter which may have allowed walls to bow out more along with no rafter tie. Left 2x4 under rafter is only a support for ceiling. Not a roof support.

Next we will raise the roof and pull in the walls and add support/repair damaged studs. After that we will continue removing carpet, pad and insulation along with ceilings and wall Sheetrock throughout the remaining 2/3 of home.

We originally thought it would be a quick flip. But after we noticed the lack of insulation in the walls. It snowballed into adding support where needed and possibly an addition renovation.

W20190222Patiocover
W20190222Patioinsulation



Organic growth due to no roof vents.

2.22.19 Above Bath and Bedroom Insulation removed. Existing patio cover roof with remaining insulation with no rafter ties.

2.22.19 Insulation from above bed and bath.

Wframing
W20190222Organicgrowth

2.23.19 The ridge beam bottom is above rafter bottom and to support rafter we installed rafter brackets.

2.27.19 Bare hot wire hidden in ceiling.

W20190227Exposedcopperwire
W20190227RafterTieadded

Installing Rafter ties above patio cover.

W20190227RafterTieattic

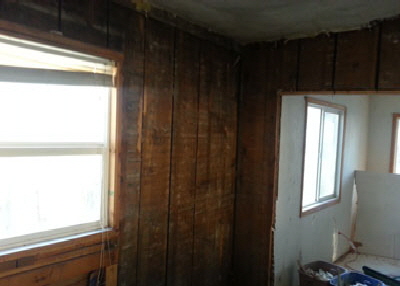

2.07.19 Kitchen wall made of verticile 2x6.

Installing Rafter ties above the existing patio cover.

3.2.19 Raising the roof. I built a temp wall to pull in bowed wall and do wall repair to split top plate. In this picture you can see 2 of the three chains used to pull the wall in.

Living room roof. No ridge beam, 1 collar tie and only 2 rafter ties. At least one rafter split and needs replacing. Plus I plan to add collar ties and rafter ties. I still need to research what to do about missing ridge beam.

Floor plans

HUDSON Front

3.4.19 Top view of top plate position sliding away from rafter

Eyehook between top plate. Pulled into correct position

3.5.19 Temporary L Bracket attached to Rafter Tie

W16HudsonFloorPlan

 Roof Repair

Sheathing-removed-web
HudsonSitePlan7AW

Site Plan

W20191005NOROOF
W20191014ExcavationAddition
W20191021FrontandSideWall
W20191104Addition Foundation
W20191107Topplate-Removed
W20191108Addition-StemWall
W20191108KFloor-Removed

Kitchen Floor lowered to make Living room and Kitchen the same level.

10.21.19 Removed Top plate to lower wall 2 inches and make rafter bird beak smaller.

11.4.19 Addition Foundation

W20190302WallSupport
W20190304Topslip
W20190302Livingroomattic
W20190304TopEyehook
W20190305LBracket
W20190413_134851

No Completion Date at this Time



Some pictures you can click on to enlarge

Roof Rafters were in worse shape than originally thought.

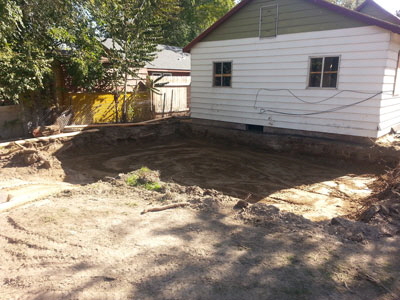

10.14.19 Digging out addition for foundation with mini Bobcat 453

11.7.19 Removed Top plate to lower wall 2 inches.

11.8.19 Addition Foundation with Stem wall

Rafter board-beam 2
W20191112Foundation
W20191114RidgeBoard

11.14.19 Sharon and I install the Ridge Board

11.12.19 Foundation completed

W20191115LRafter-
W20191118Tiestrap-Rafter
W20191118Rafter-Tie

11.18.19

11.18.19 I used a tie strap to pull rafter beak ends flush to wall prior to attaching rafter ties

10.5.19

4.13.19

2.16.19

2.11.19

W20191126LFrontWall
W20191130AEve
W20191130BackEve
W20191130BackEve2



11.30.19 Building Eves

4.2.20

W20200402Roof
BuiltWellHomeHeadingCrop
W20200403ORIGINAL-RAFTER-EVE
W20200417-MIDDLE-SHEATHING
W20200417-NROOFEVE
W20200417-NROOFRAFTERS
W20200417-ORIGINAL-S-EVE

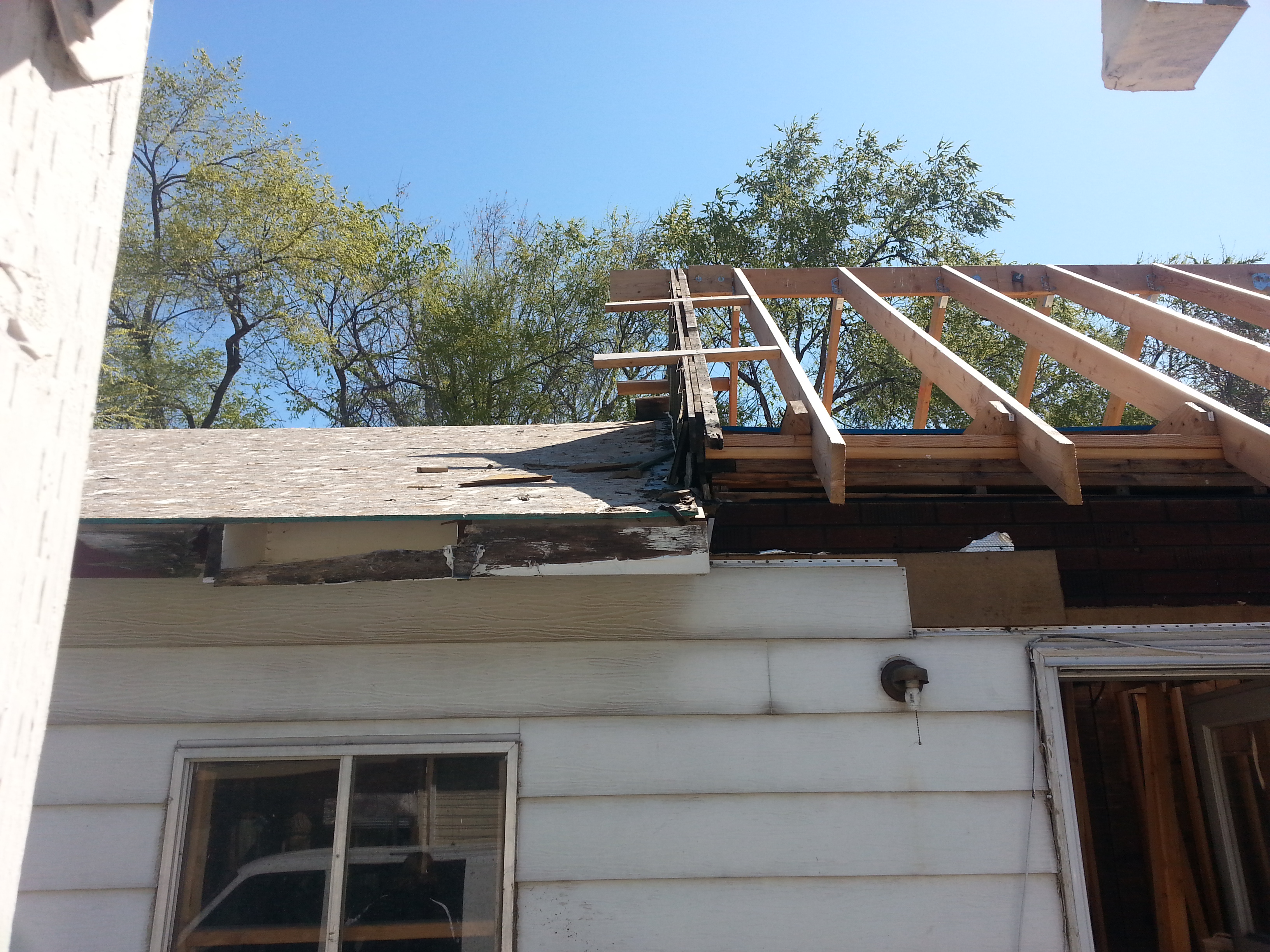

4.17.20 Original Sheathing

4.17.20 New Eves

4.30.20 Original 2x4 Rafter Eve

4.17.20 New Eve and Ridge Board

4.17.20 Original South Eve

W20200420Fascia
W20200420Facsia2
W20200428Sheathing

4.20.20

4.20.20

4.28.20 First Sheets

W20190223Rafterhangers

6.1.20 Installed 6 more rafters with Andrew.

W20200601ATTIC

6.1.20

6.1.20

W20200601ATTIC2
W20200601ESIDE

6.1.20

W20200601Outside
w20200620chimneychisel

6.20.20 Removing Chimney

6.20.20 Most of Kitchen ceiling removed.

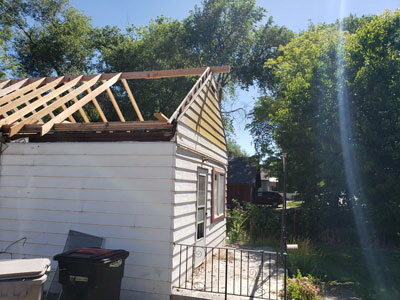

6.22 20 Removed Front Patio Cover and Extended Ridge Beam for Eve

W20200620removedceiling
W20200622FrontRidgeBoard

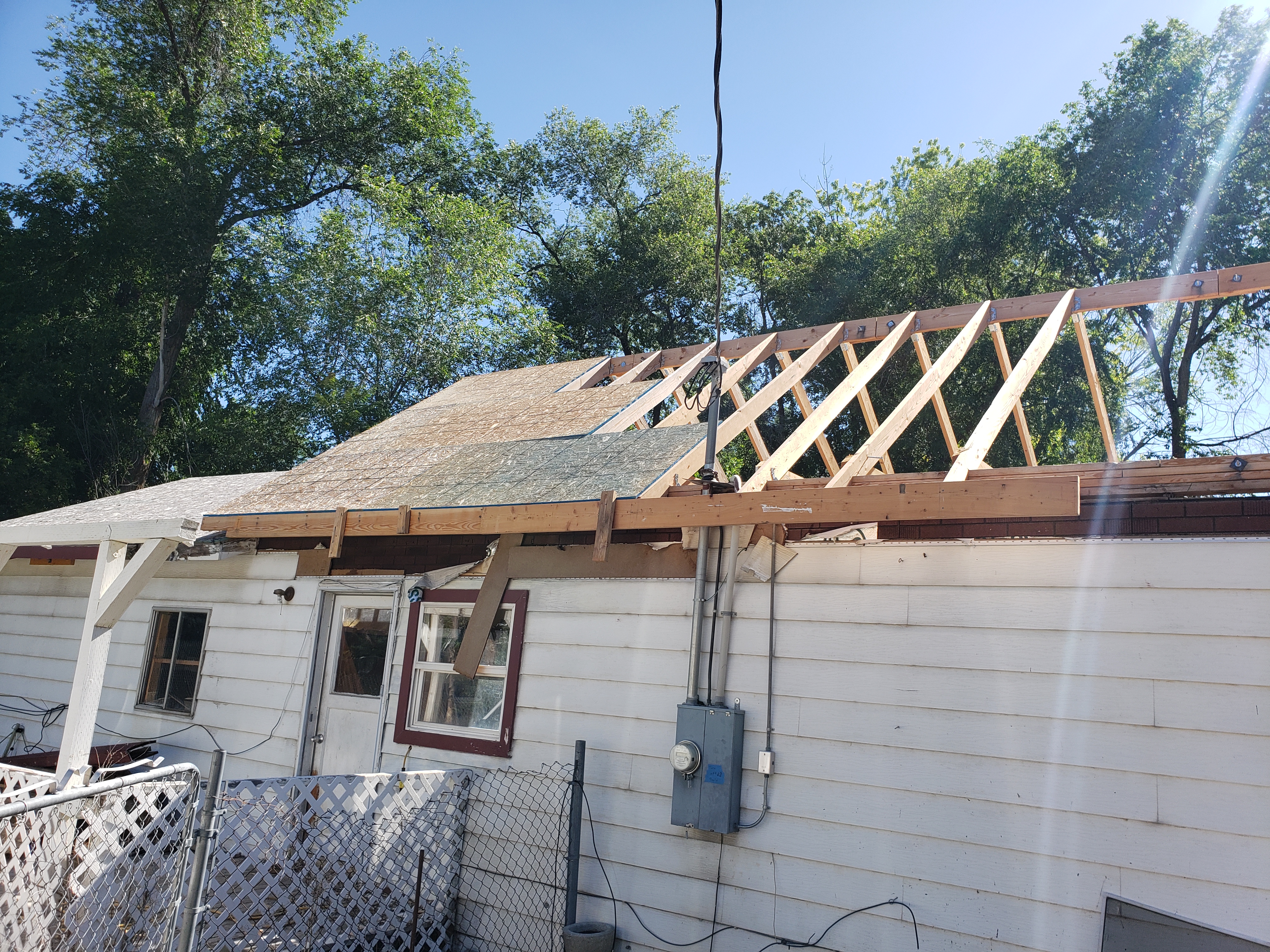

6.23.20 Added Fascia and sheeting.

W20200623Sheeting



11.26.19

11.30.19

W20190207BADWALL

I’m a little bit off today.

8.26.20 Sheeting Rafters

W20200709EFront
W20200709WFRONT

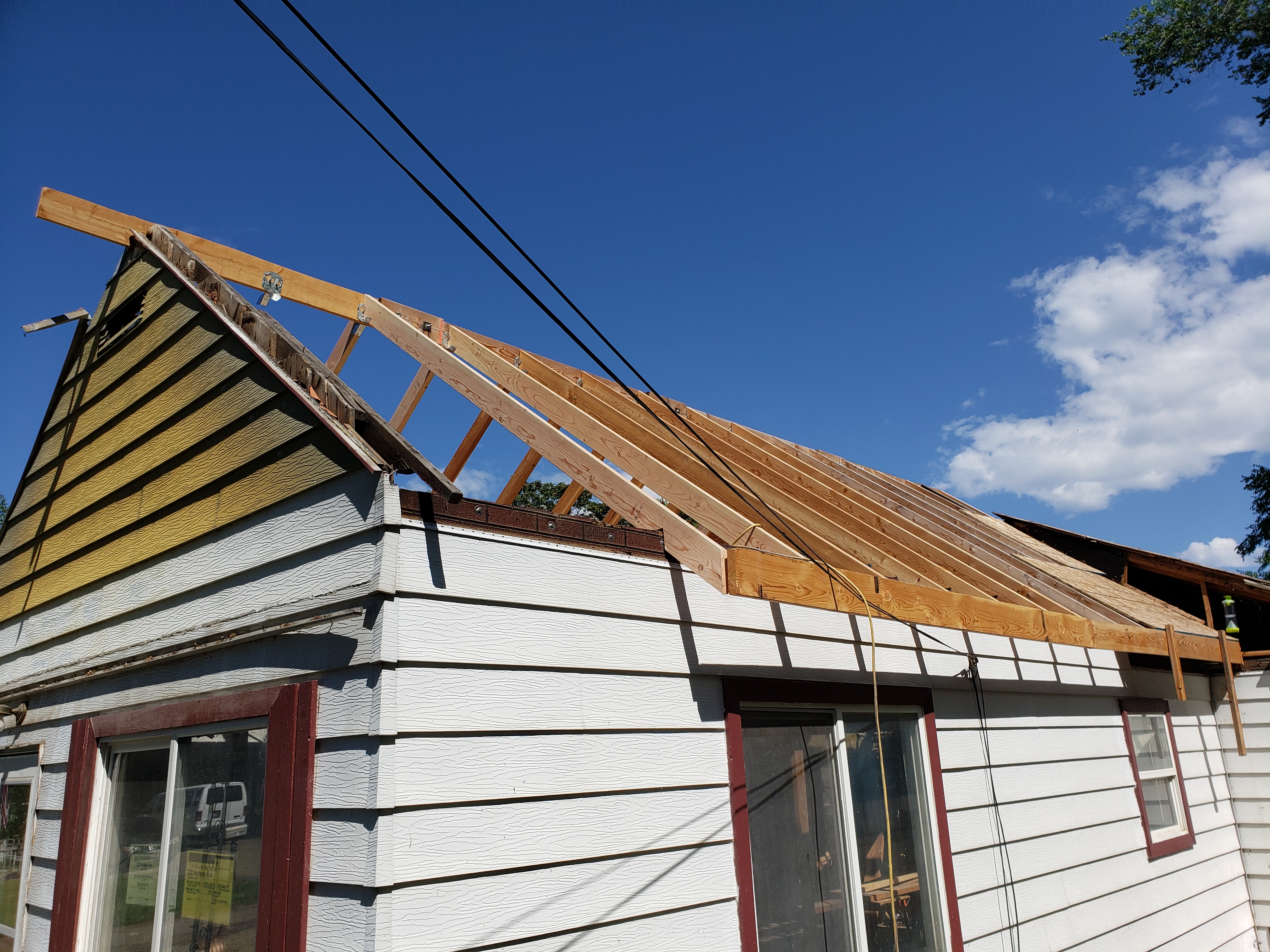

7.9.2020 Rafters

7.9.2020 Rafters

W20200715EFRONT
W20200715WFRONT

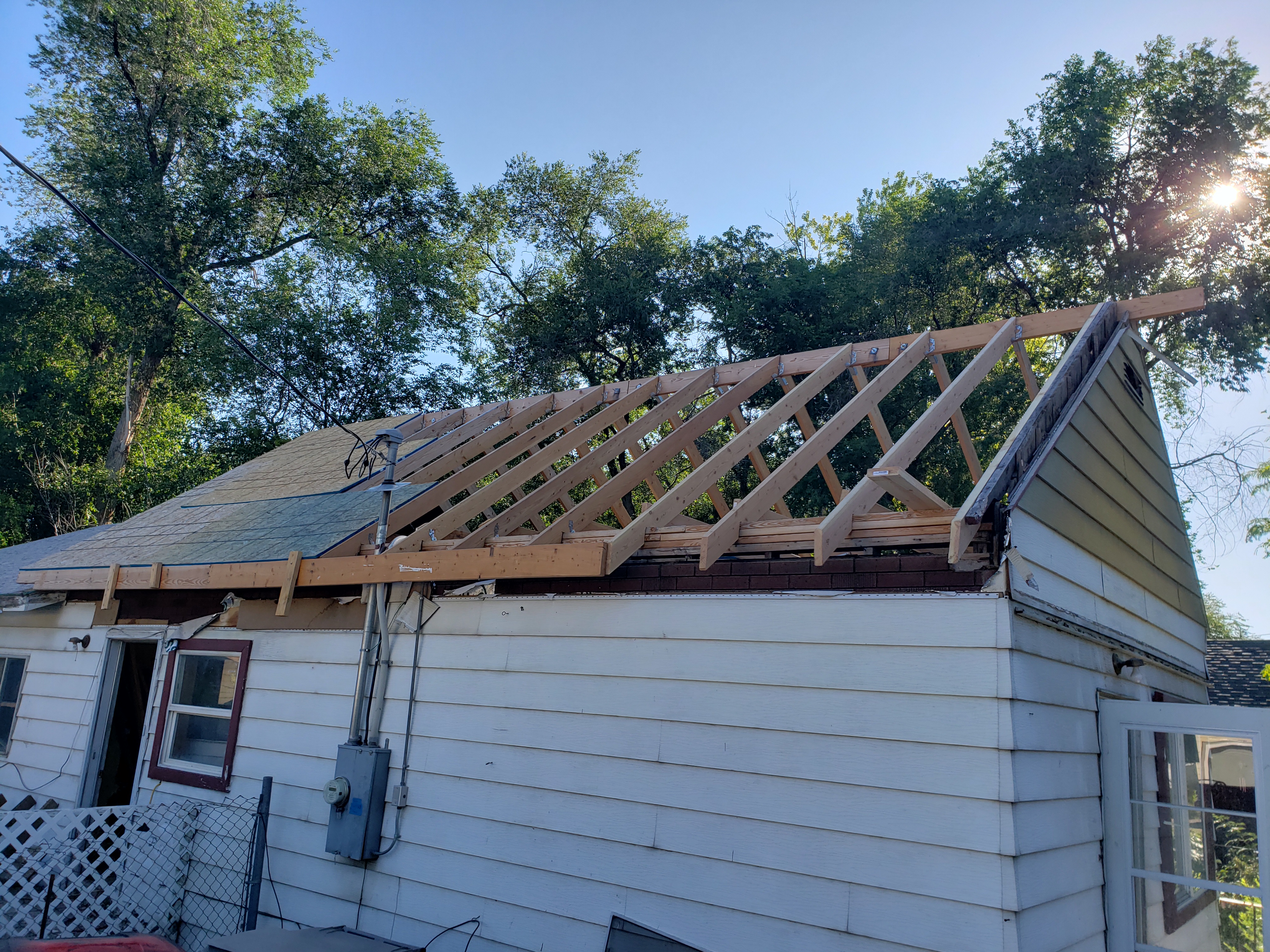

7.15.2020 Rafters

7.15.2020 Rafters

7.20-27.2020 Dealing with wasps are delaying the roof

wasppic

7.23.2020 Rafters

20200723FrontFascia

The Game is Over

W20190921Originalroof

9.21.19 Original Roof

W20190926Roofremoval

9.26.19

W20190921Roof



9.21.19 Original Roof

W20190926OldCeilingSupport

9.26.19 Support for ceiling to walk on.

W20200901attic
W20200901Attic2

9.1.20 Attic

9.1.20 Attic

W20200905sheeting

9.5.20 Sheeting complete

W20200907NaiilingSheeting

9.7.20 Nailing Sheeting

W20200907Sitnroof

9.7.20 Sitting on roof
